材料简介
Introduction
透明陶瓷是经过独特材料设计与特殊工艺制备的完全致密多晶陶瓷材料,它既能在特定光谱范围内接近达到理论光学透过率、同时还能承受大的机械/热载荷,是一类重要的先进结构/功能一体化材料。
The transparent ceramic is a kind of fully dense polycrystalline material fabricated through unique material design and processing. It is an advanced material with integrated structural/ functional properties, which can not only approach to the theoretical optical transmittance in a specific spectral range but also withstand high mechanical and thermal loads.
1、透明陶瓷的弹性模量、硬度、断裂韧性以及断裂强度等机械性能均为其3-5倍以上;
2、透明陶瓷的光谱透过范围覆盖近紫外、可见光、激光、中红外波段;
3、透明陶瓷的抗热震性、耐砂尘雨蚀、环境耐候性更优
1. The mechanical properties of the transparent ceramic, such as elastic modulus, hardness, fracture toughness, and fracture strength, are more than 3 to 5 times higher.
2. The spectral transmission range of transparent ceramics covers the near-ultraviolet, visible light, laser and mid-infrared region.
3. The thermal shock resistance, sand/rain erosion resistance and weatherability of transparent ceramics are better.
主要应用方向
特种光学窗口、透明装甲、消费电子产品、半导体等领域。
Special optical windows, transparent armor system, consumer electronics, semiconductor, etc.
性能指标对比
Critical indicators
关键指标
生产厂商
晶格常数 (Å)
密度 (g/cm³)
平均晶粒尺寸 (μm)
杨氏模量 (GPa)
泊松比
弯曲强度 (MPa)
断裂韧性 (MPa•m1/2)
维氏硬度 (GPa)
阿贝数
比热 (J/g℃)
热导率 (W•m-1K-1)
热膨胀系数 (30-200ºC) (×10-6 K-1)
光学折射率nD (@589.3 nm)
武汉海凌汇智,中国
7.977
3.642
80
306
0.262
395
2.56
16.05
73.66
0.778@32 ℃
11.84@32 ℃
6.14
1.7327

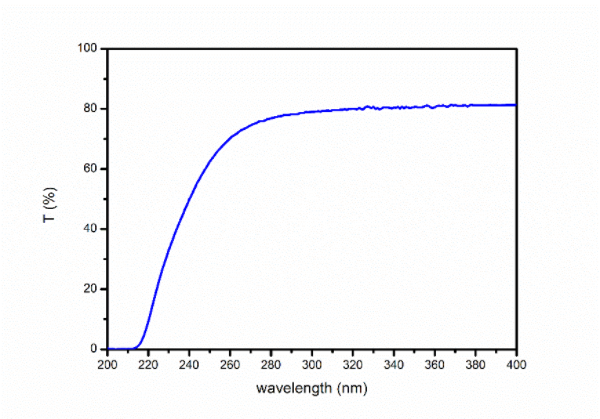

本公司产品紫外波段透过率

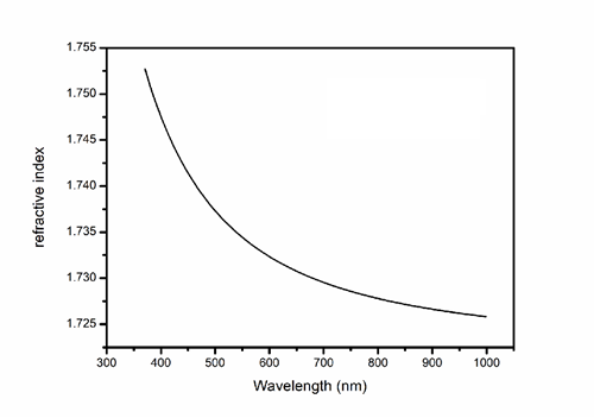

The refractive index of the company's product
本公司产品折射率
The transmittance of the company's product in the ultraviolet band

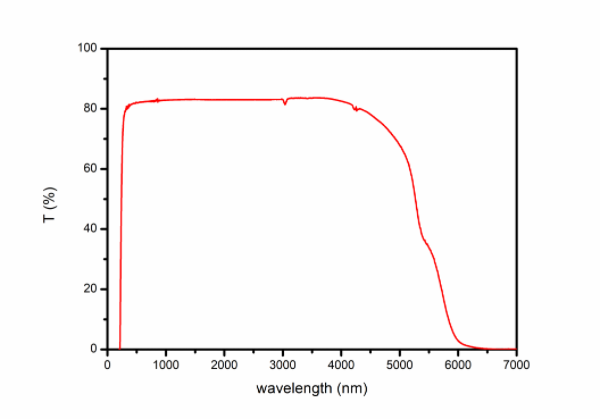

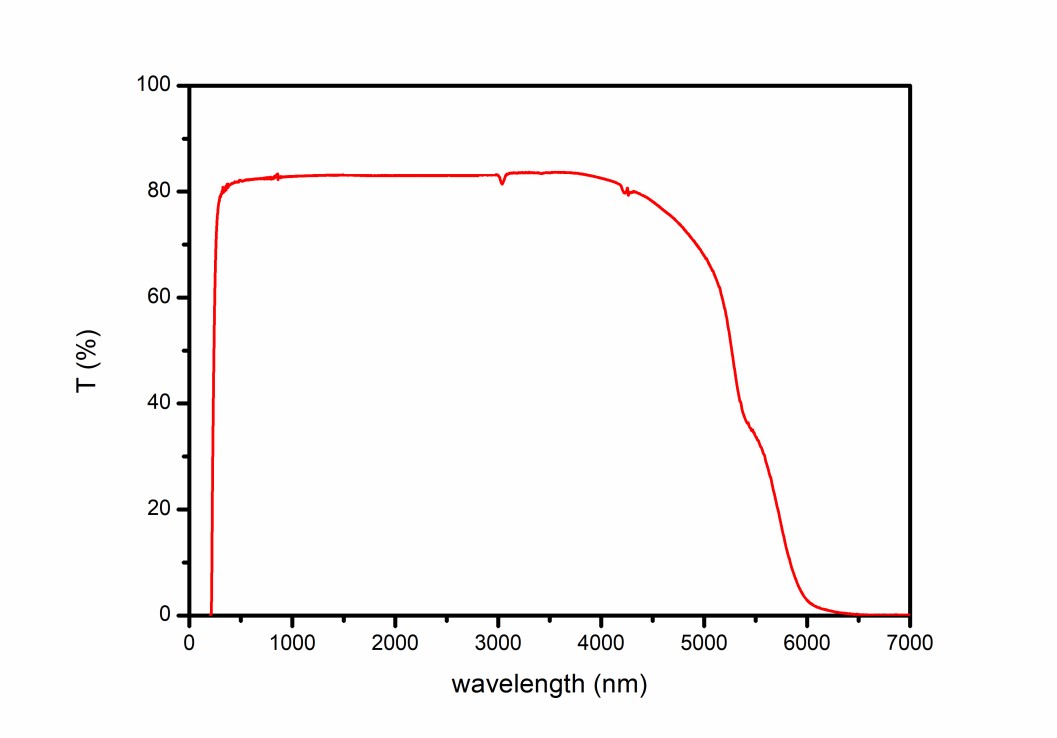

本公司产品紫外-可见光-中红外透过率
The transmittance of the company's product in the ultraviolet, visible and mid-infrared range
产品规格
Product specification

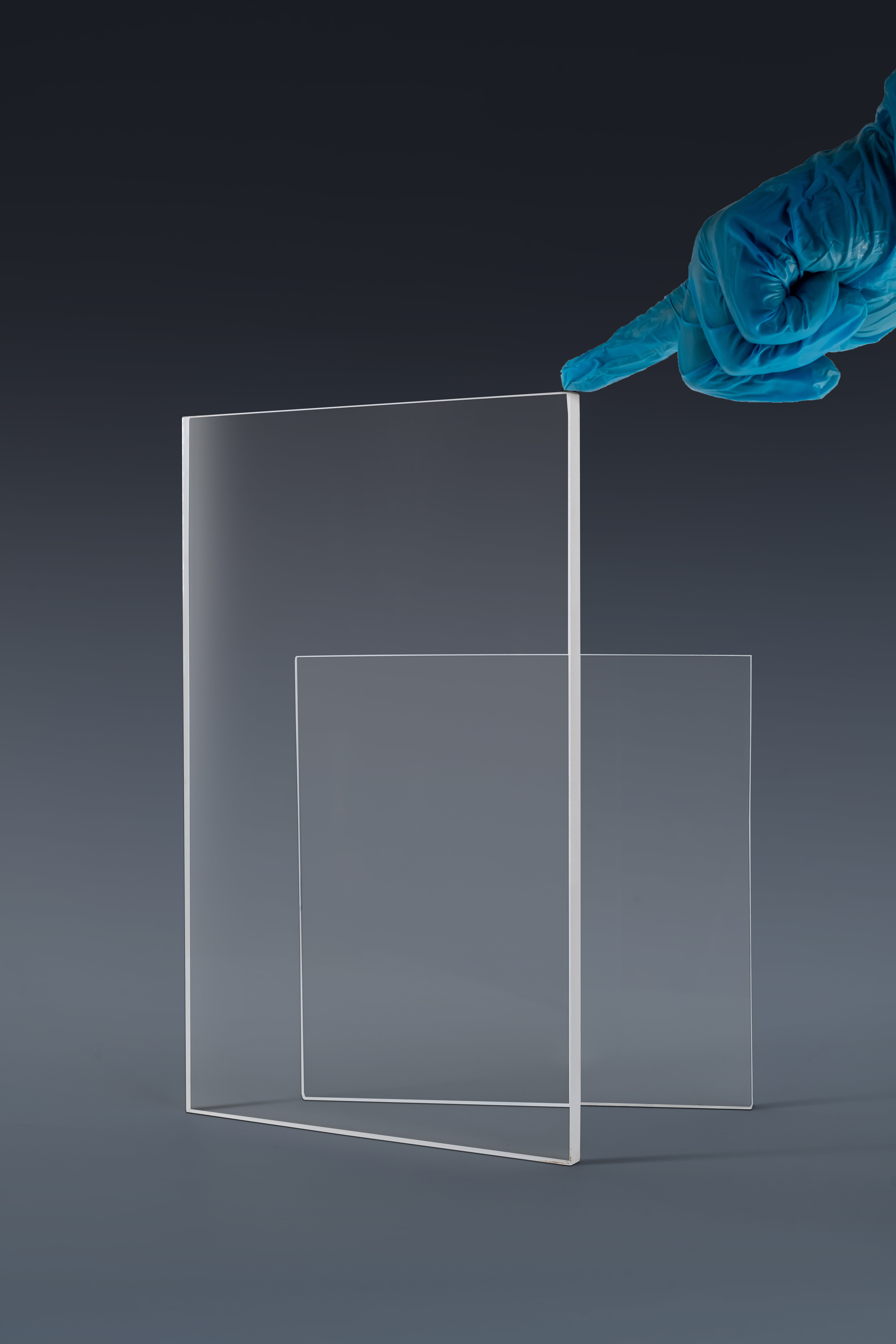

方板/Square flat plate:260×160×5 mm,
圆板/Circular flat plate:φ150×5 mm ,
可依客户需求定制
公司介绍
Company Profile
武汉海凌汇智新材料有限公司(以下简称“公司”)由爱体育·(中国)手机网页版(创业板股票代码:300395)和武汉理工大学专家团队共同发起成立。
公司致力于先进结构/功能一体化透明陶瓷材料技术与产品的市场化开发,目前产品主要包括光学陶瓷器件、半导体用透明陶瓷器件、高端装备用透明陶瓷部件等。公司已具有高品质透明陶瓷与器件的设计制备等全套技术和专利,研制的透明陶瓷技术指标达到国际先进水平并填补国内空白。公司已建成“结构/功能一体化透明陶瓷材料研发及生产平台”,拥有国内最大口径“双两千”热等静压烧结系统等核心装备以及完备的透明陶瓷生产全过程检验检测平台。
WUHAN HYALINE HUIZHI NEW MATERIALS CO., LTD. (hereinafter referred to as "the Company") was jointly founded and set up by Hubei Feilihua Quartz Glass Co., Ltd. (Gem board stock code: 300395) and the team of professionals from Wuhan University of Technology.
The Company is dedicated to the market-oriented development of advanced structure/function integrated transparent ceramic technologies and products. Currently, it mainly produced optical ceramic devices, transparent ceramic devices for semiconductors, transparent ceramic components for high-end equipment, etc. The Company currently holds a complete set of technologies and patents for the design and preparation of advanced transparent ceramics and devices. The technical indexes of transparent structural ceramics developed have reached the international advanced level and filled gaps in the domestic. The Company has already set up a "R & D and Production platform for structure/function-integrated transparent ceramic materials" and owns the core equipments such as the largest "Double Two Thousand" hot isostatic pressing sintering system in China, as well as a complete “inspection and testing platform for the entire process of transparent ceramic production”.
